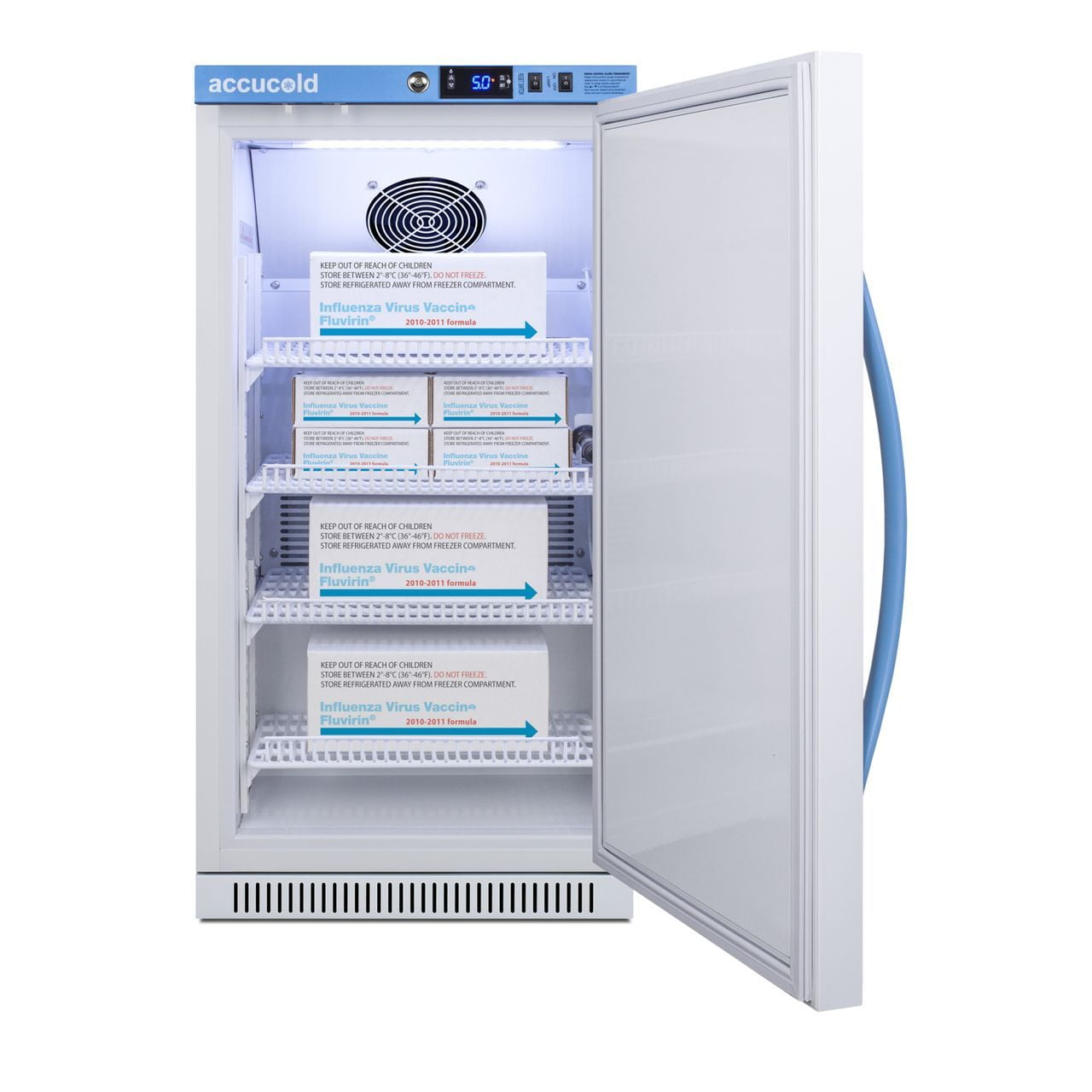

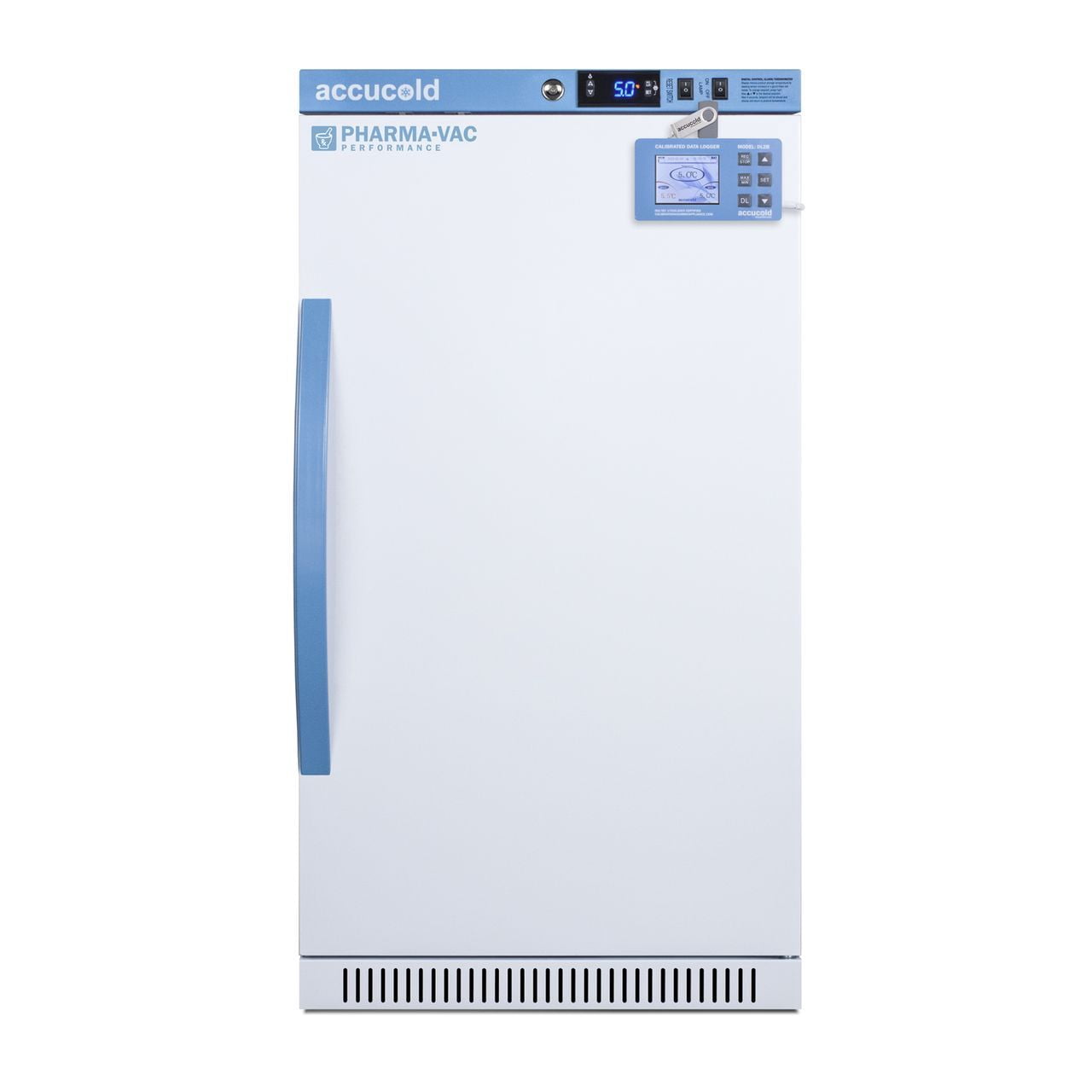

Summit 32" ADA Vaccine Refrigerator Digital Data Logger
Product details
| Management number | 230951821 | Release Date | 2026/06/18 | List Price | $843.11 | Model Number | 230951821 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Accucold's Pharma-Vac Performance Series are upright all-refrigerators designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines. Inside, the ARS32PVBIADADL2B utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan to ensure excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. The ARS32PVBIADADL2B comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The door ships with a right hand swing and self-closing function, while a factory-installed lock provides security as needed, with two keys for staff use. Powerful magnetic gaskets ensure a positive seal. Designed with hydrocarbon refrigerant, the ARS32PVBIADADL2B provides an energy efficient solution to vaccine storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, as well as solid door options, are also available. Explore the full Pharma-Vac series at accucold.com/pharmavac. Features : 32" height fits under lower ADA compliant counters . Intelligent microprocessor digital temperature controller. NIST calibrated DDL included for accurate temperature logging. Improved temperature accuracy with a separate temperature probe for continuous product readout to simulate stored product temperature. Recessed installation capable for use in 19" wide spaces. Specifications : Lock : Yes. Capacity : 2.83 cu.ft. (80 L). Defrost Type : Automatic. US Electrical Safety : ETL. Canadian Electrical Safety : ETL-C. Amps : 0.75. Voltage Frequency : 115 V AC/60 Hz. Shipping Weight : 113.0 lbs. (51 kg). Reversible : Factory Reversible. Shelf Quantity : 4. Adjustable Shelves : Yes. Thermostat Type : Digital. Refrigerant Amount : 1.41oz.. High Side Psi : 280. Low Side Psi : 90. Overall Dimensions : Height of Cabinet : 32.0" (81 cm). Width : 19.75" (50 cm). With with Door Open : 20.25" (51 cm). Depth : 22.63" (57 cm). Depth With Handle : 24.38" (62 cm). Depth With Door At 90 : 40.0" (102 cm).
Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines
32" height is designed to fit under ADA compliant counters
Versatile design allows recessed installation under counters or freestanding use
The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
Accucold DL2B data logger is NIST calibrated in our ISO/IEC 17025:2017 laboratory, with user-set logging intervals, a large LCD readout of the current and high/low temperature, and virtually unlimited storage through internal memory and a convenient USB drive; for additional information on this logger's features, view the DL2BKit on our website
Meets UL-471 commercial standards
Intuitive controls let you adjust the interior temperature between +2C to +8C
Visual and audible alarms alert if the interior temperature rises or falls out of set range
Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
Battery-powered alarm sounds if the power connection is interrupted
Audible and visual alarm warns if the sensor is disrupted
Control panel requires password entry to adjust the parameters beyond the set point
Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Control panel provides a readout of the low and high temperatures in 15 minute increments
Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs
Keyed lock conveniently located towards the top of the door for added security (2 keys included)
Shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size
Secure three-pronged cord for added unit safety
Walls are constructed from white powder coated metal for added strength and improved temperature retention
Energy efficient LED lighting with internal on/off switch
Added protection in busy settings
Quality door gaskets ensure a tight seal for energy savings and improved performance
Allows the unit to be used freestanding
2 years parts and labor/5 years compressor
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
Solid and glass door choices available from 1 to 15 cu.ft. Browse the Pharma-Vac series for more information
Compatible with Pyxis, Omnicell, and AcuDose RX
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
| Refrigerator type | Reach-in Refrigerators |
|---|---|
| Volume capacity | 9.1 cu ft |
| Height | 32 in |
| Number of doors | 1 |
| Refrigerator feature | Digital Temperature Control |
| Brand | Summit Appliance |
| Volts | 115 V |
| Door material | Glass |
| Exterior finish | white |
| Defrost type | Automatic |
| Shelf material | plastic-coated wire |
| Number of shelves | 4 |
| Power type | Corded Electric |
| Rec location | Indoor |
| Weight | 113 lbs |
| Color category | White |
| Refrigerator dispenser type | No Dispenser |
| Model | ARS32PVBIADADL2B |
| Light bulb type | LED |
